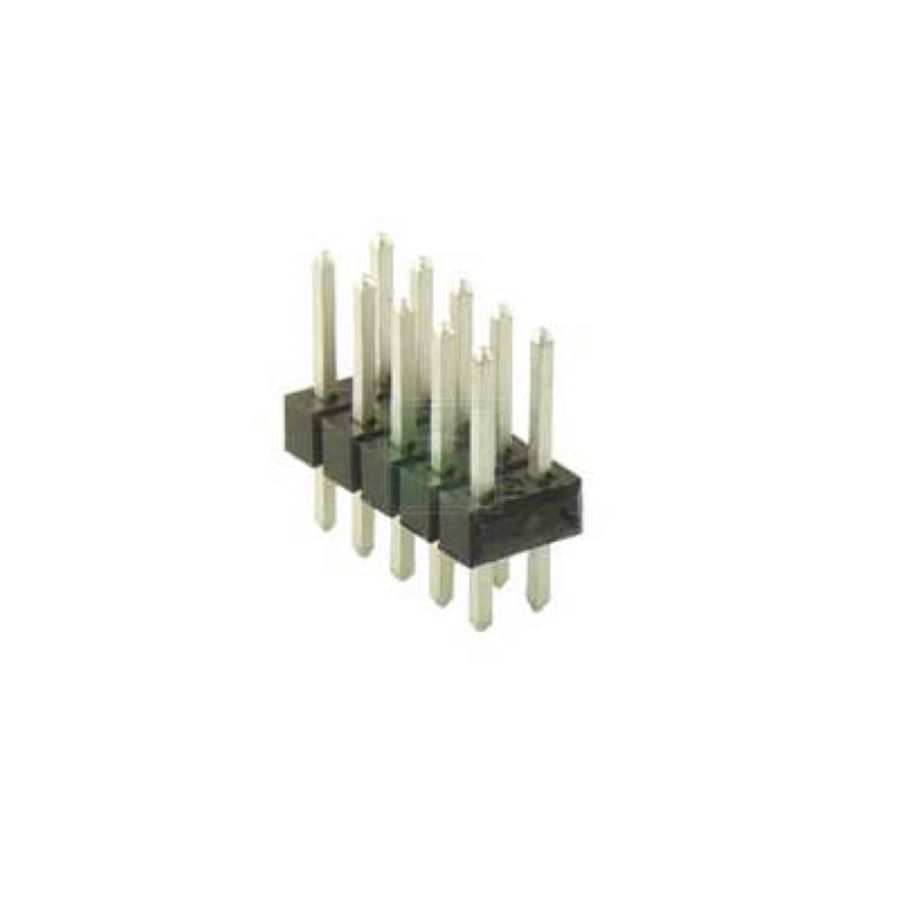

PEC05DAAN
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
PEC05DAAN
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 2.54 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Nickel, Tin |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Plastic |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 2769
Distributors
pcbx
pcbxUnit Price$0.40704
Ext.Price$0.40704
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40704 | $0.40704 |
| 10 | $0.34750 | $3.47500 |
| 25 | $0.32912 | $8.22800 |
| 50 | $0.31171 | $15.58550 |
| 100 | $0.29523 | $29.52300 |
| 300 | $0.27891 | $83.67300 |
| 500 | $0.26350 | $131.75000 |
| 1000 | $0.25092 | $250.92000 |
| 3000 | $0.23707 | $711.21000 |
| 5000 | $0.22398 | $1119.90000 |
| 10000 | $0.21494 | $2149.40000 |
